Robotic pallet labelling places printed labels on agreed faces of a palletised load. Assess it where the required positions, heights or load formats make a flexible application path useful. The complete task includes pallet identity, data release, application, verification and handling failed labels.
Speak directly with Oxford Industrial Automation about robot-applied pallet labels.

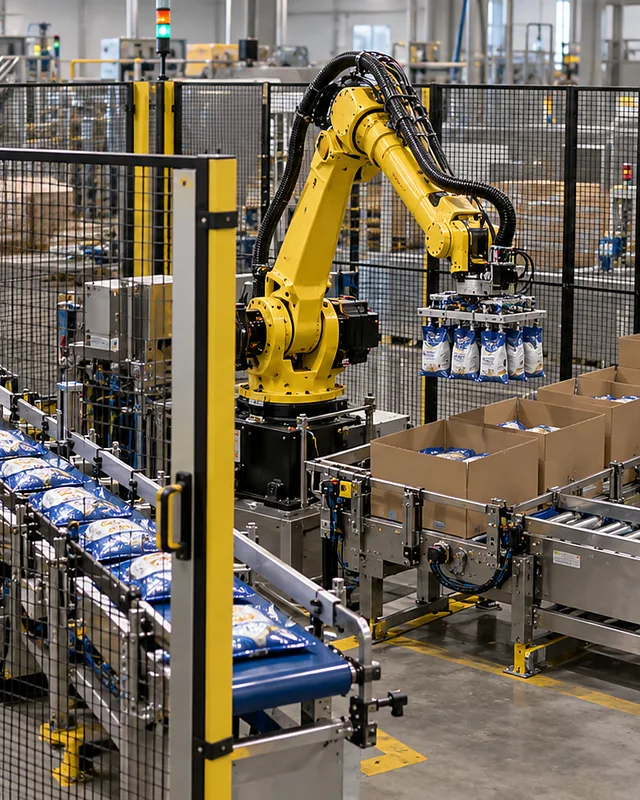

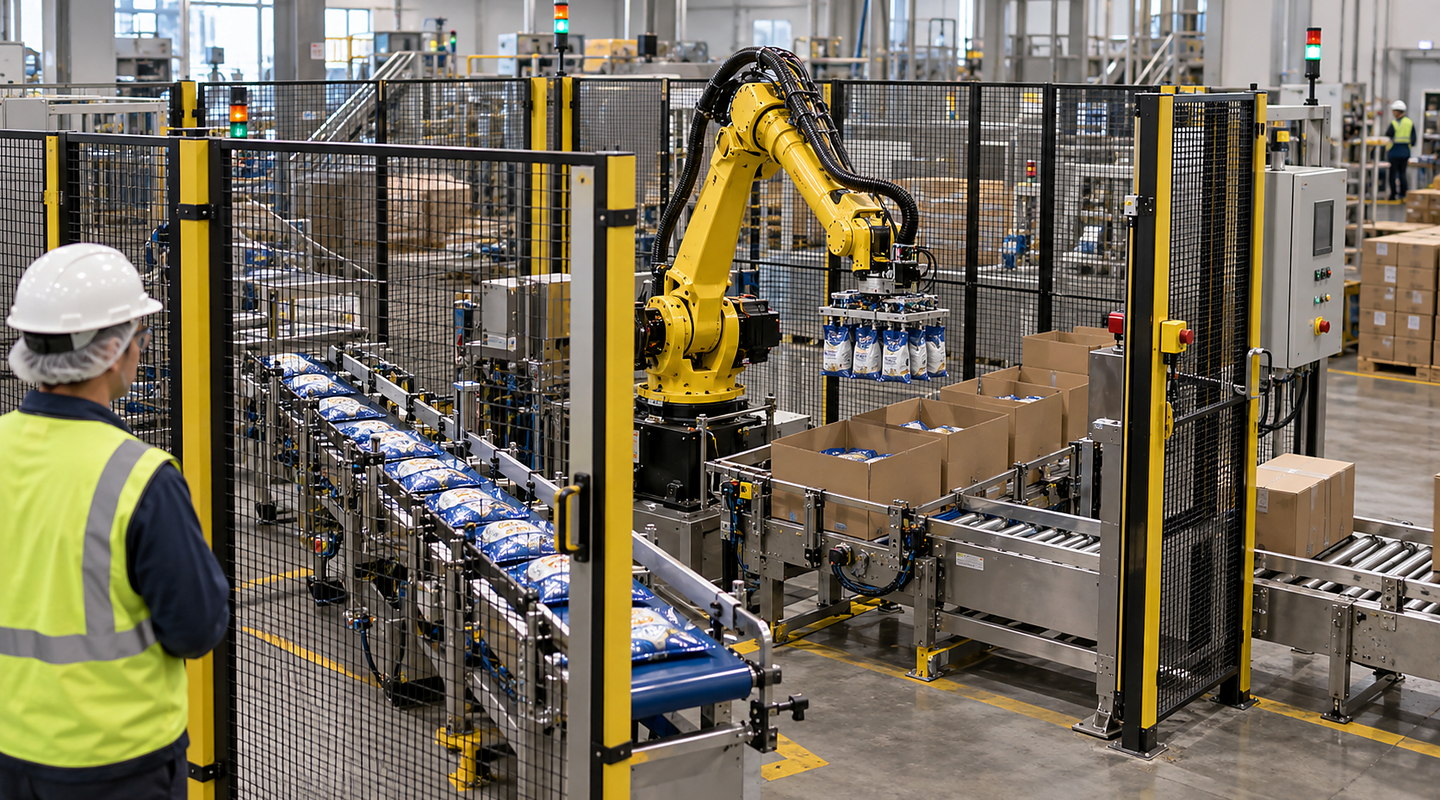

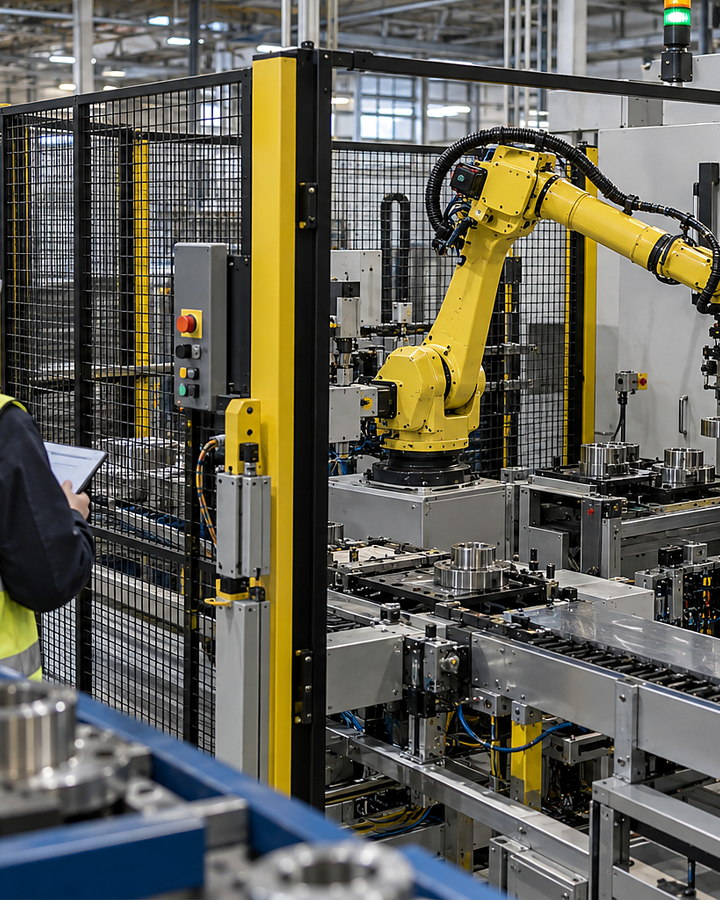

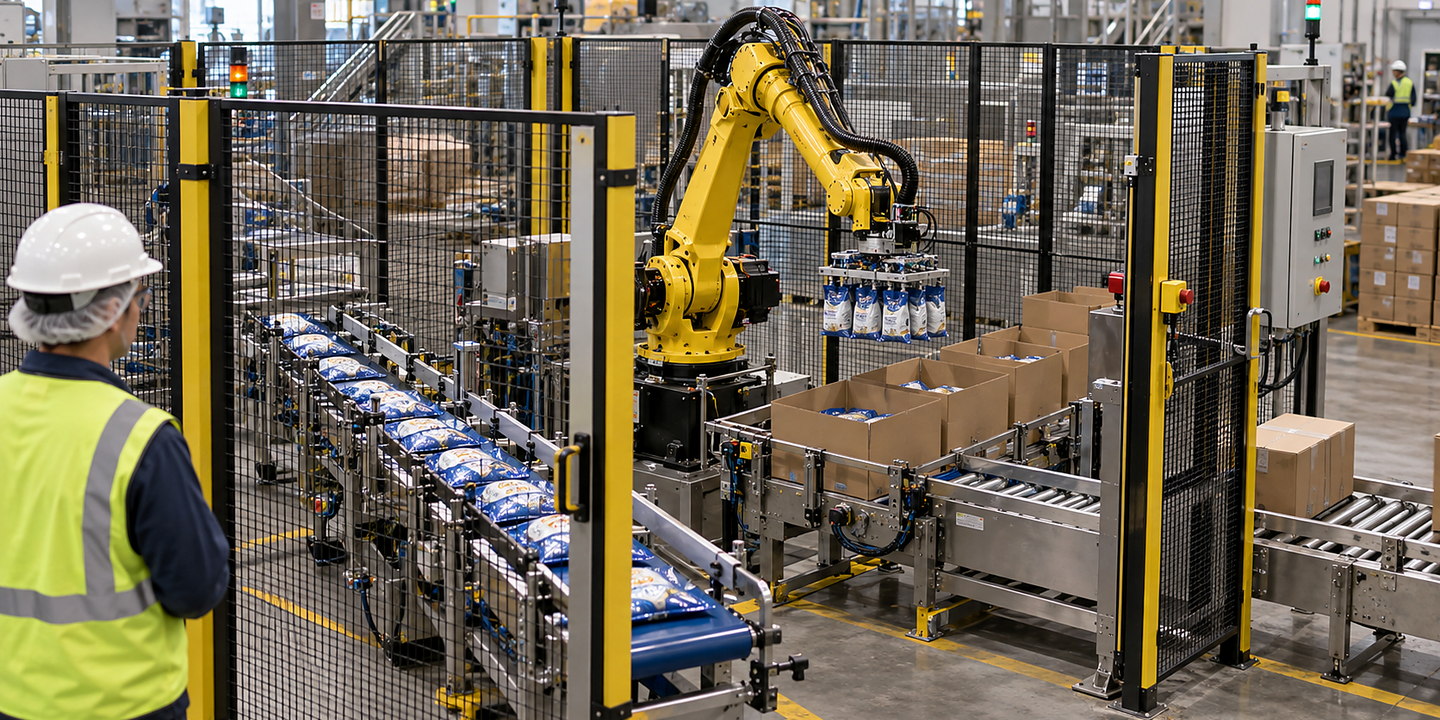

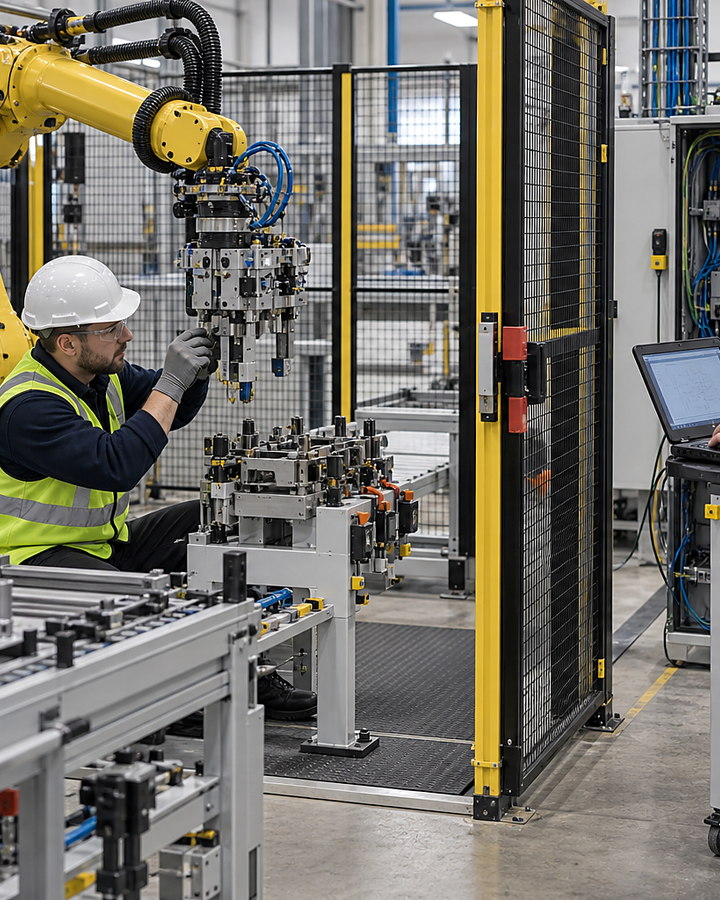

General industrial automation photographs, showing case packing and robot-cell setup. Pallet labelling requires trials with the actual load, wrap, label positions and identification workflow.
Define the label faces, heights and positions across the pallet range, including wrap and load variation. Compare trial application and code verification with the available conventional arrangements. Include data release, pallet identification, failed labels and reprints so that the proposed robot handles the complete labelling task.
A neatly applied label is useful only when its contents and placement match the load being released.
Provide pallet dimensions, load heights and the required label areas. Include overhang, uneven loads and different wrap finishes. Compare the robot’s application path with the accessible surfaces across the whole format range.
Describe the positions that actually vary and compare a conventional arrangement on that same duty. A robot is a candidate where its movement adds useful flexibility; the decision should include cycle, footprint, guarding, maintenance and changeover.
Identify the system that authorises the label data and the event that binds it to the physical load. If the workflow uses GS1 logistic labels, include the applicable identifier and customer requirements in the approved data specification.
Trial the actual film, surface condition and load shape. Assess label pickup, placement and adhesion without relying on an ideal flat test box. Confirm that applying a label does not displace the load or create an unacceptable finish.
Distinguish successful printing, successful application, code reading and correct data association. Define what each sensor or camera confirms. Agree whether failed or uncertain loads are held, diverted or sent to a controlled manual process.
Challenge a printer fault, missing label, stopped pallet and replacement label. Record how obsolete labels are contained and how the active load is confirmed on restart. Recovery must not apply the next pallet’s data to the previous load.
The right choice changes with part, product and process variation for robot-applied pallet labels, arrival pattern and presentation, your line layout and required results.
Use representative full pallets and the actual label stock, printer data and wrap. Challenge the lowest and highest label positions, different faces, a failed scan and an interrupted application. Reconcile the printed identifier, physical pallet and system event for every test case. Retain the agreed exception and reprint sequence with the placement results.
Use the selection guide to compare the scope, then send the specification checklist with your application enquiry.
Your final solution for robot-applied pallet labels must reflect the law, current standards and site-specific risks that apply to your installation.
Define what happens when the printer has produced a label but the applicator has not confirmed pickup. The system should retain a clear association with the intended load and an agreed disposition for the unused label. Printing the next job without resolving the first can make the physical label and active data disagree.
Identify whether the pallet can move after its data has been assigned and before all required faces have been labelled. On restart, the control sequence needs an agreed way to confirm the load and the work already completed. Do not infer completion from robot movement alone when a pickup, application or verification step remains uncertain.
Separate presence, readable content and correct association with the load. Decide which checks are required and how an uncertain result is held for review. Where formal barcode verification is specified, a successful decode alone should not be recorded as that verification result; the approved test method must govern release.
Record who requests the replacement, which load it belongs to and how an obsolete or duplicate label is controlled. Include a deliberate replacement case in the agreed trial and reconcile it with the data record. Use the selection guide and specification checklist to define these states before comparing robot and fixed-applicator concepts.
